Meha

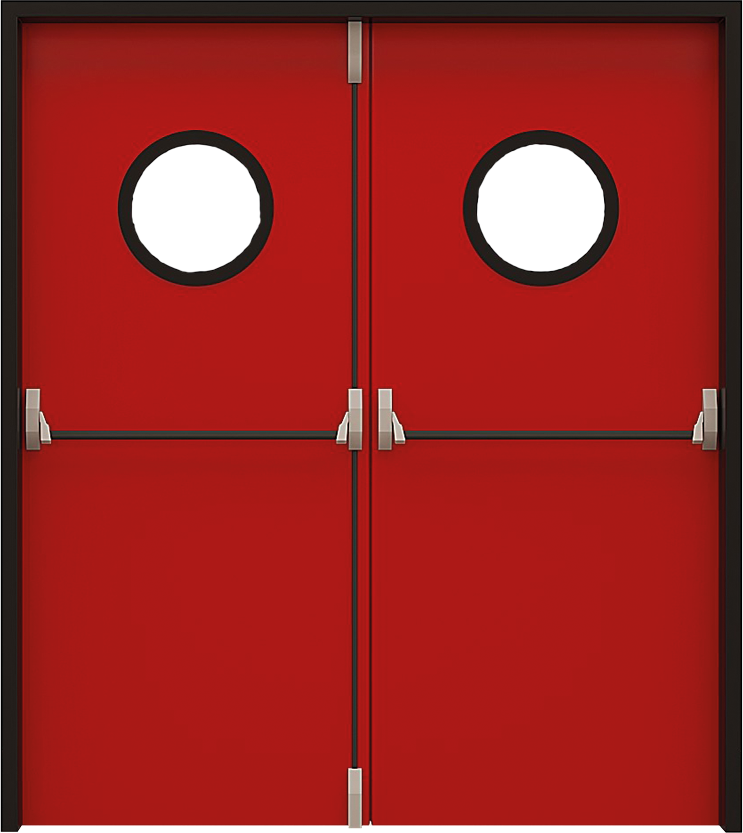

Glazed Double Leaf Fire Door

Glazed double leaf fire doors perfectly combine fire safety and aesthetic needs. These doors are ideal for high-traffic areas such as workplaces, shopping centers, hotels and public buildings. Both the wide-opening design and the transparent glass panels add a modern touch to interiors.

Features and Benefits:

Wide Passage Area: The double-wing design offers a wide passage area, which relieves heavy traffic and allows for rapid evacuation in case of emergency.
Transparent Glass Panels: Glass panels provide natural light transmission, creating a spacious and bright environment indoors.
Modern and Stylish Design: Aesthetically appealing, these doors give your spaces an elegant and modern look.
Durable Structure: Made of robust and high quality materials, it provides long-lasting use and high durability.
Easy Operation: The ergonomic design allows the door to be opened and closed easily, offering practicality in daily use.
Fire Safety: Creates a safe barrier during a fire, prevents the passage of smoke and flame, and prevents the spread of fire.
Various Size Options: Available in various sizes to suit different spaces and needs, it is an ideal solution for any space.
Glazed double wing fire doors ensure fire safety while at the same time taking into account aesthetic concerns. While maximizing safety in your workplace or public areas, it gives your interiors an elegant and modern look. Offering a safe, durable and aesthetic solution, these doors are designed in accordance with fire safety standards.

Product Features

Standard:
EN 1634-1

Fire Resistance:
90 minutes in Class E. - 90 Minutes in Class EI.

Frame
1.2 mm Galvanized

Wing
1 mm Galvanized

Assembly
Fire resistant insulation materials are used in our assemblies. Mortar and filling are not used.

Insulation
150 kg/m3 Rockwool 40 mm, Fire Resistant Drywall

Test No:
(special request - we will send with documents)

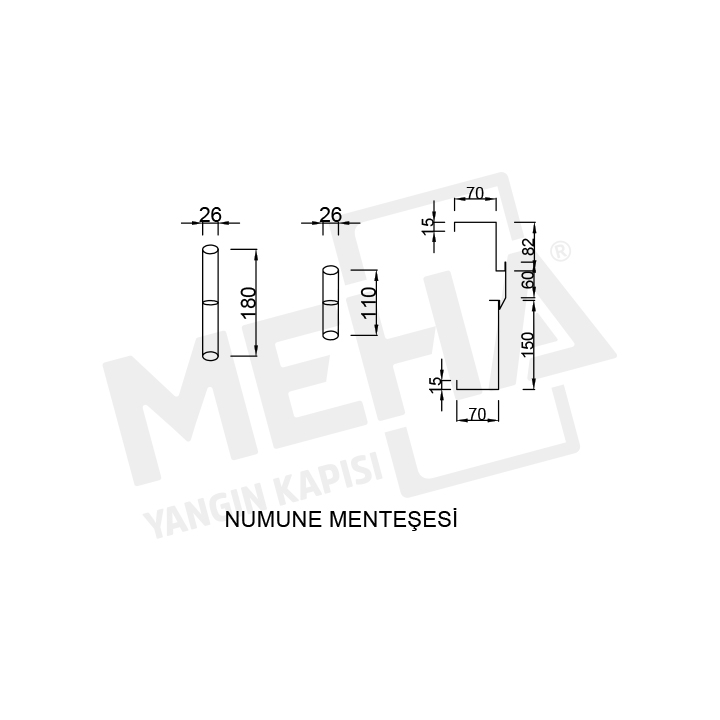

Hinge
Spring hinge for self-closing.

Sash Thickness:
65 mm

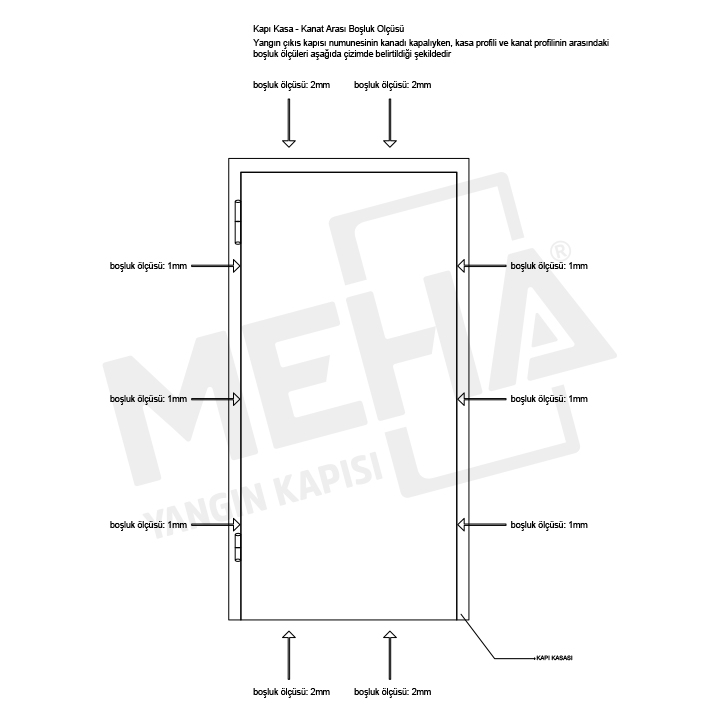

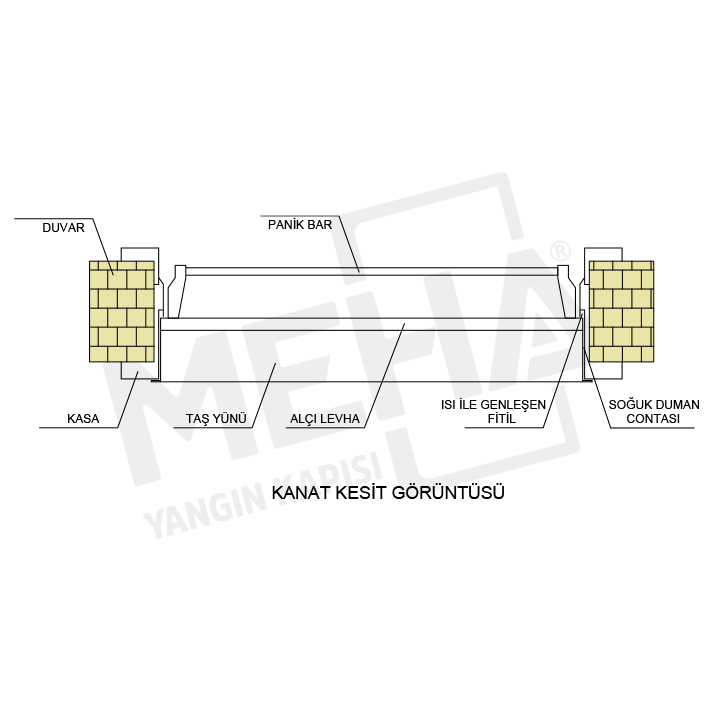

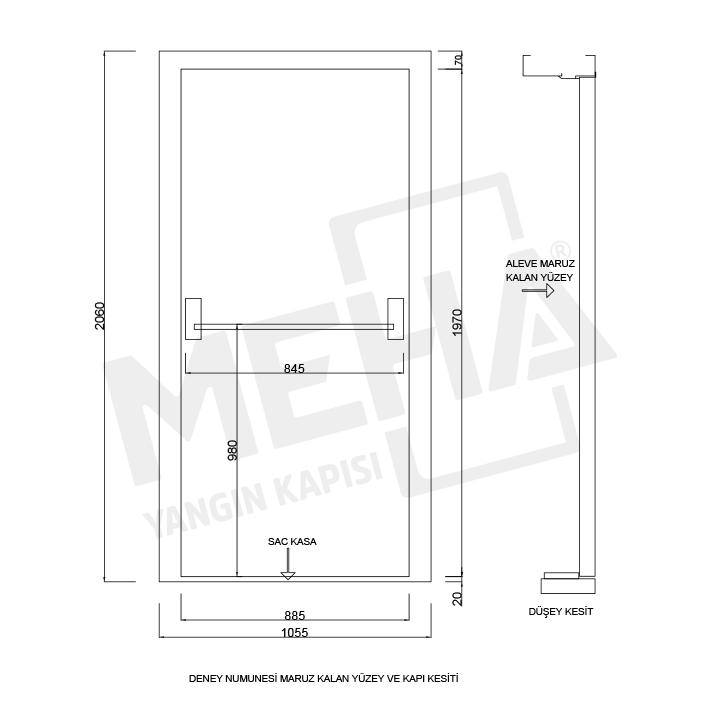

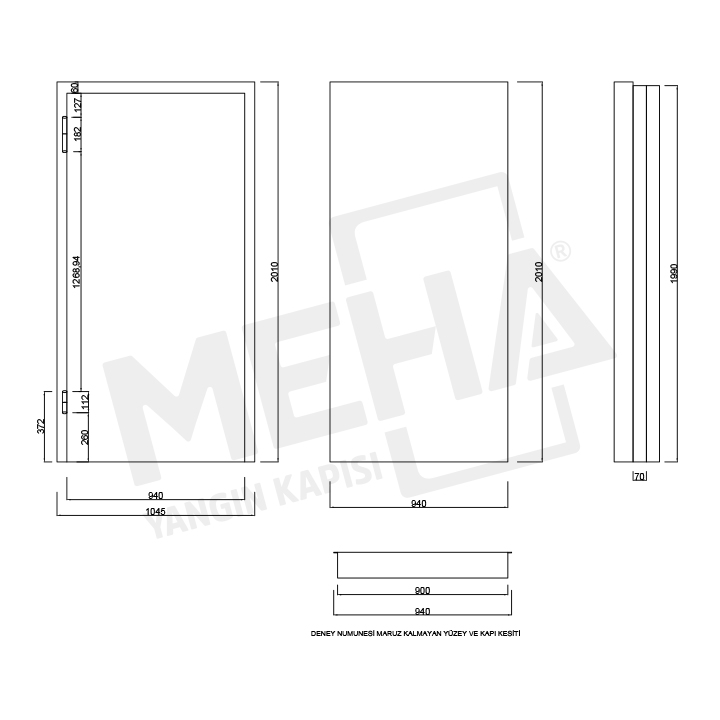

Teknik Çizim
