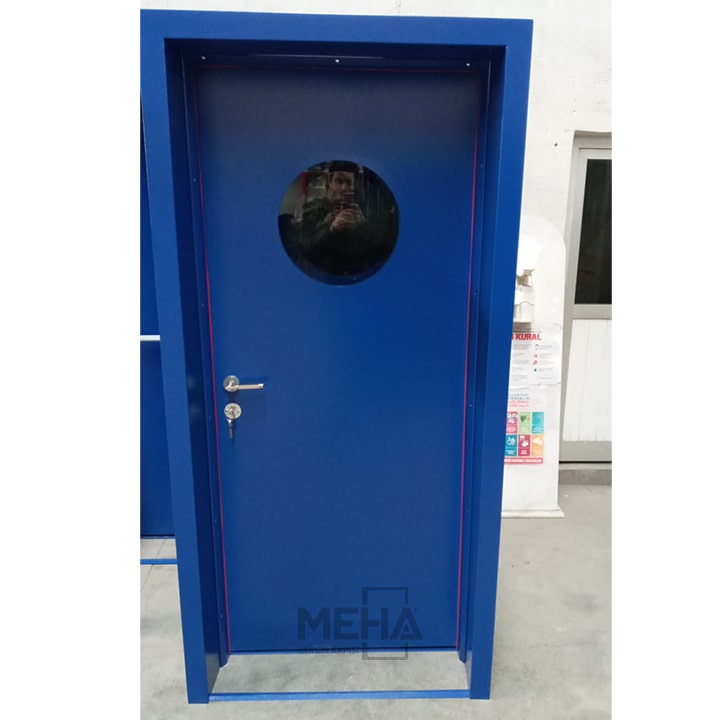

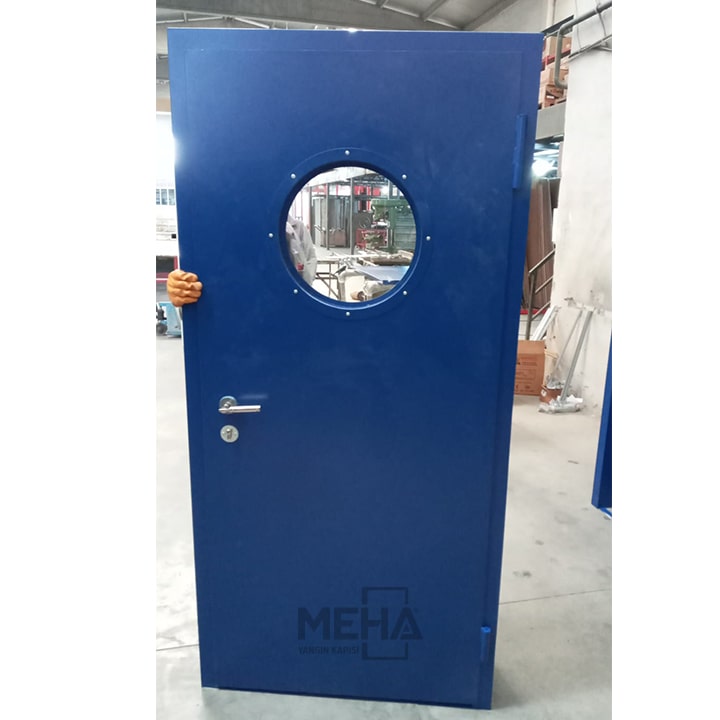

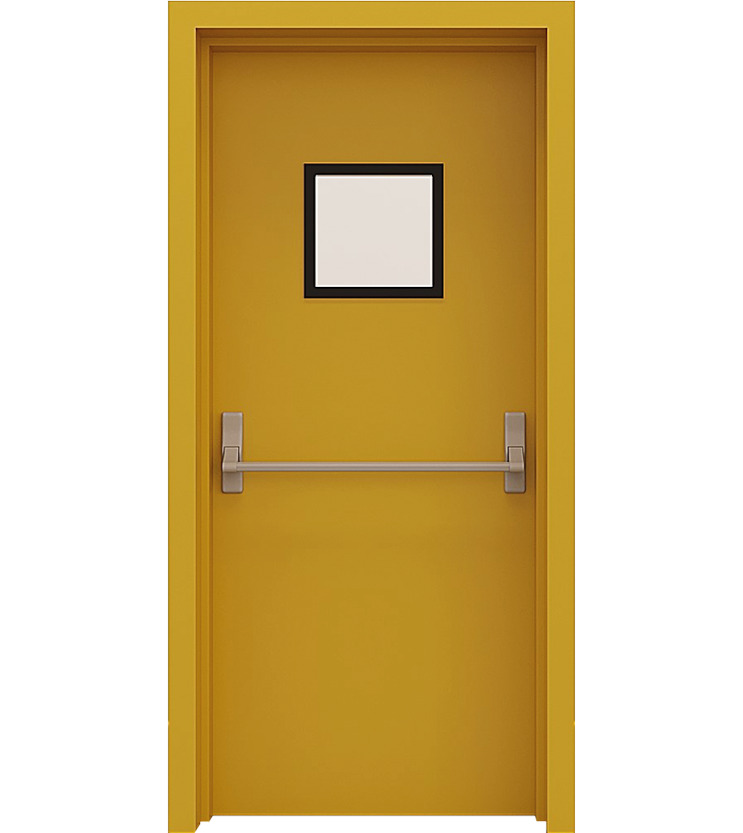

SINGLE LEAF FIRE DOOR WITH GLASS

"Glazed single leaf fire doors combine fire safety and aesthetic appearance. These doors offer the perfect solution for both businesses and public buildings, ensuring your safety in case of fire while adding a modern and stylish touch to your interiors.

Features and Benefits:

Transparent Glass Panel: The glass panel provides natural light transmission, making interiors appear brighter and more spacious.
Fire Resistance: Manufactured using fire-resistant materials, this door creates a safe barrier by preventing the passage of flame and smoke during a fire.
Durable Structure: Made of high quality materials, these doors have a long-lasting and robust structure, resistant to impacts and abrasion.
Easy Operation: With its user-friendly design, the door is extremely easy to open and close, offering practicality in daily use.
Aesthetic Design: With its modern and stylish design, it adds an elegant touch to interiors and is visually appealing as well as functional.
Various Size Options: It adapts to all kinds of spaces with various size options suitable for different needs.
Energy Efficiency: It contributes to energy saving by providing good insulation and minimizes heat losses.
Sound Insulation: Thanks to its glazed structure and quality wicks, it provides sound insulation, thus offering both safety and comfort.
Glazed single-leaf fire doors are manufactured in accordance with fire safety standards and are an ideal solution to add both security and aesthetics to your spaces. These doors ensure your safety in case of fire and give your interiors a modern and stylish look. With its robust structure and aesthetic design, it offers security and elegance together in your workplace or public spaces."

Product Features

Standard:
EN 1634-1

Fire Resistance:
90 minutes in Class E. - 90 Minutes in Class EI.

Frame
1.2 mm Galvanized

Wing
1 mm Galvanized

Assembly
Fire resistant insulation materials are used in our assemblies. Mortar and filling are not used.

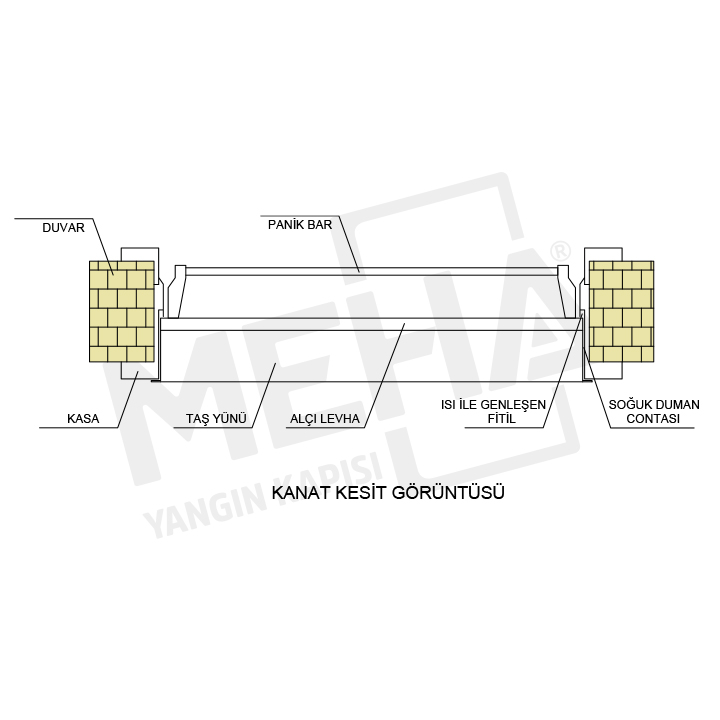

Insulation
150 kg/m3 Rockwool 40 mm, Fire Resistant Drywall

Test No:
(special request - we will send with documents)

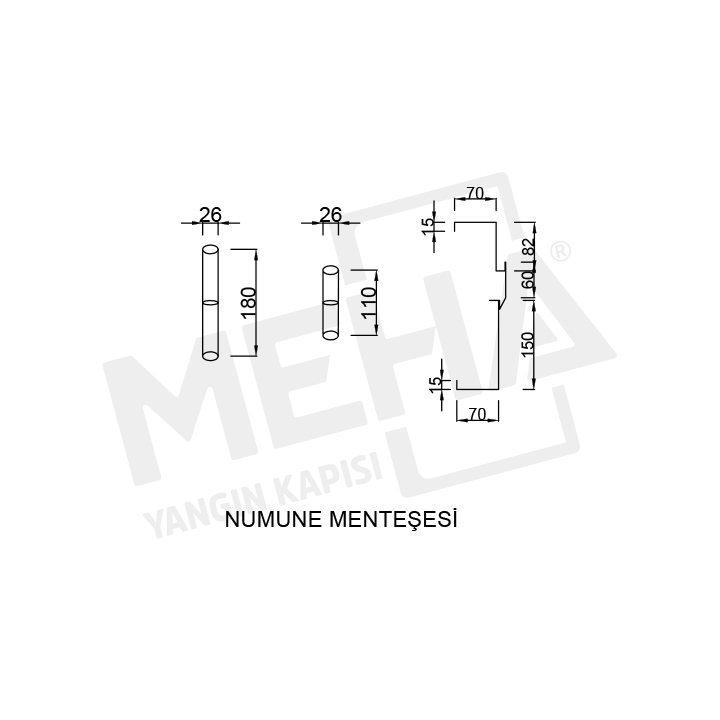

Hinge
Spring hinge for self-closing.

Sash Thickness:
65 mm

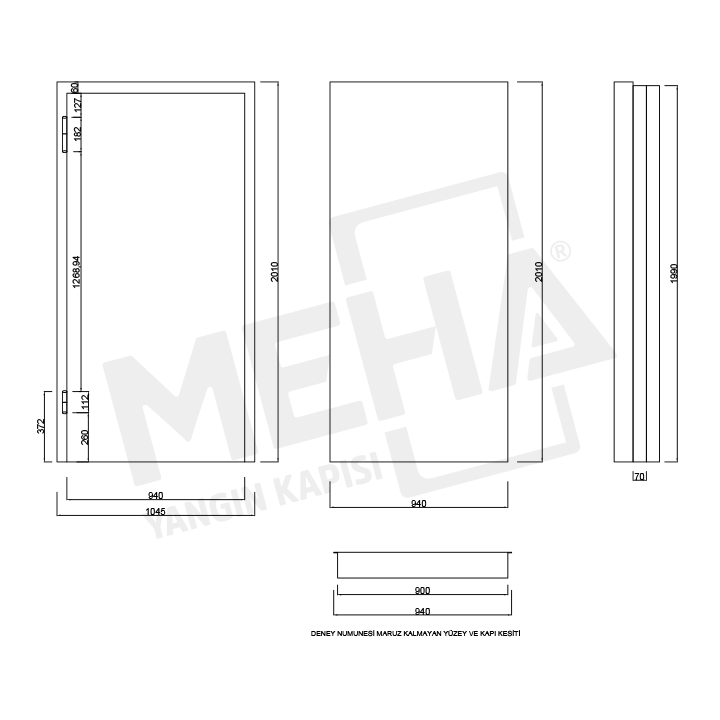

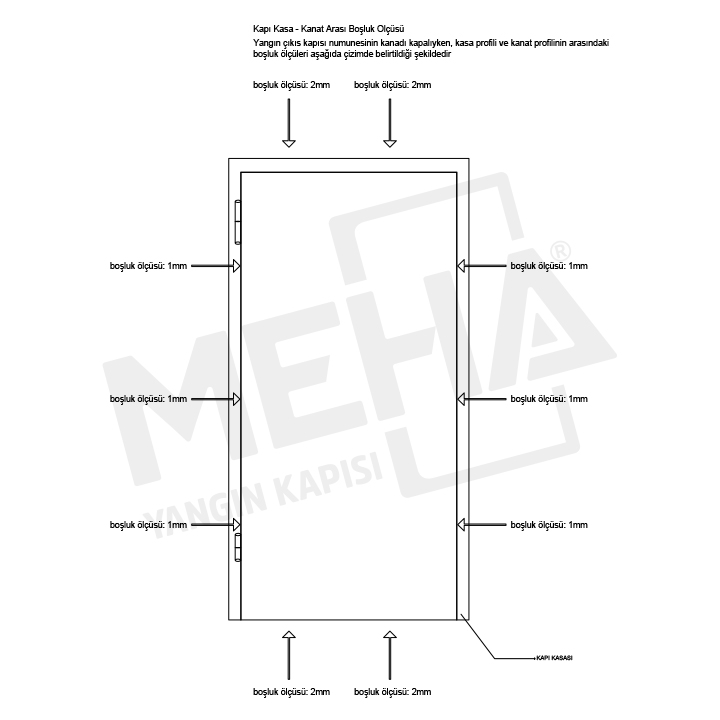

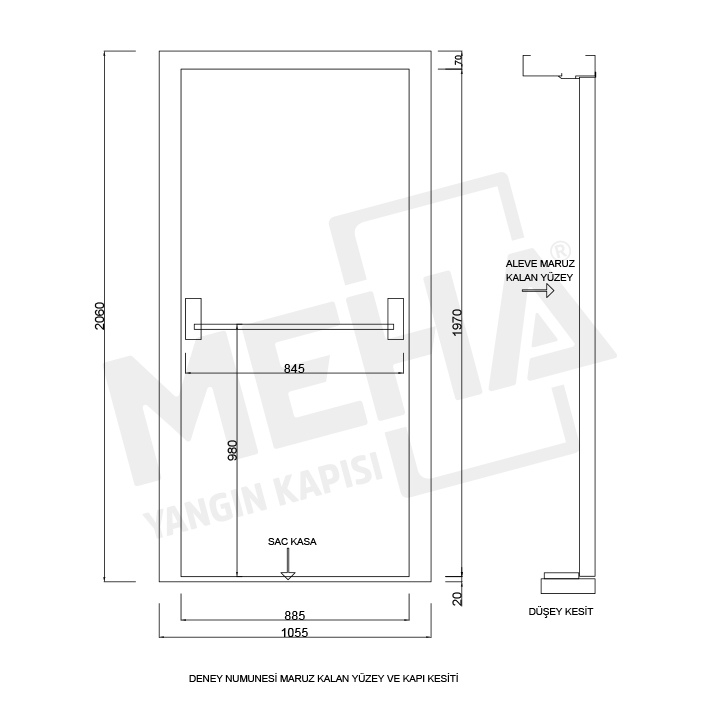

Teknik Çizim
